l This equipment measures the curl of glass fiber at off-line.

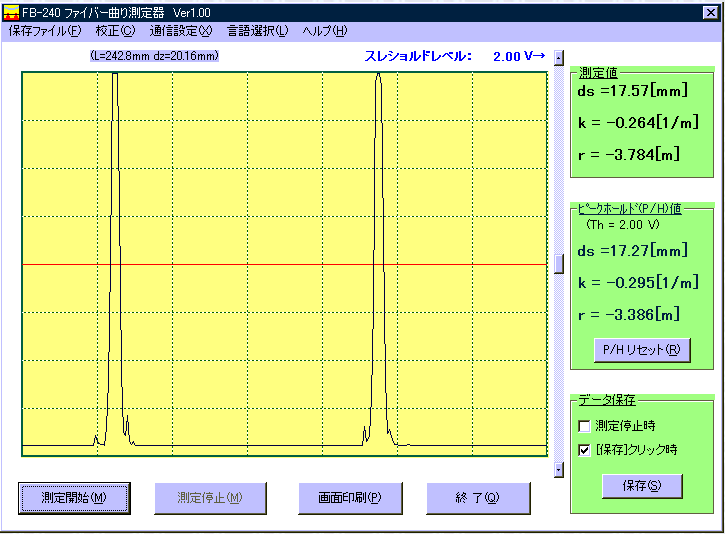

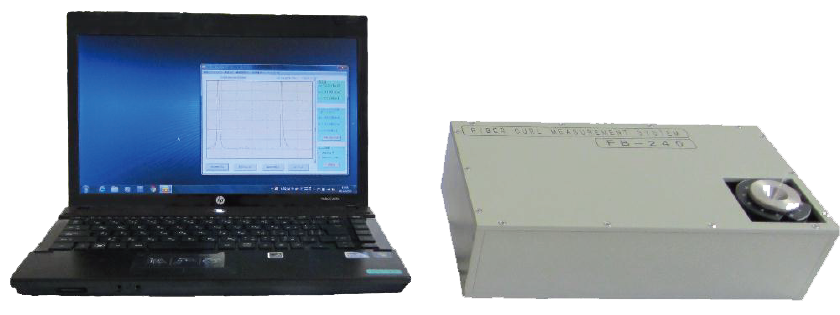

l This system consists of a sensor unit & FB-240 special application software, that is made to run on the presonal computer.
l A sensor unit is connected by RS-232C cable with serial port of the personal compute.
l This equipment measures the curl of glass fiber by using CCD line sensor.
・Principle
l This equipment emits two parallel laser beams to glass fiber, and measures the distance between the two laser beams on the CCD line sensor reflected by glass fiber.
l The curl of fiber is represented by curvature k[1/m] and radius of the curve r[m].
l The relation between curvature k[1/m] and radius of the curve r[m] is
l k = 1/r
l Curveture k[1/m] of fiber is
l k = 1/2L * (ds/dz-1)
l (k : Curvature[1/m],
l dz : Standard distance between the two laser beams[mm],
l ds : Measured distance between the two laser beams on the CCD line sensor reflected by the fiber[mm],
l L : Distance between the fiber and the CCD line sensor[m].)
Model | |
Applicable fiber | 124um cladding diameter glass fiber |
Measurable curvature range | 0 ～ 0.5 [1/m] |
Light source | Semiconductor Laser (680nm Visible) |
Width of 2 optical path | 20mm |
Distance of fiber and screen | Aprox. 243mm |
Sensor | CCD line sensor(5000bit, 7um/bit) |
Connection with | RS-232C(19200bps,Non-Parity,Data-8bit,1-Stopbit) |
Measuring time | Approx. 0.32sec |
External Communication | RS-232C (Another port from the connection with sensor unit ) |
Power supply for sensor unit | AC100～240V 50/60Hz Free power supply (less than 8VA) |
Operating temperature | 0～45℃ |
Operating humidity | 30～85% (non condensastion) |
Outside dimention of sensor unit (W*H*D) | 144mm * 72mm * 191mm |
Weight of sensor unit | Approx. 3kg |
