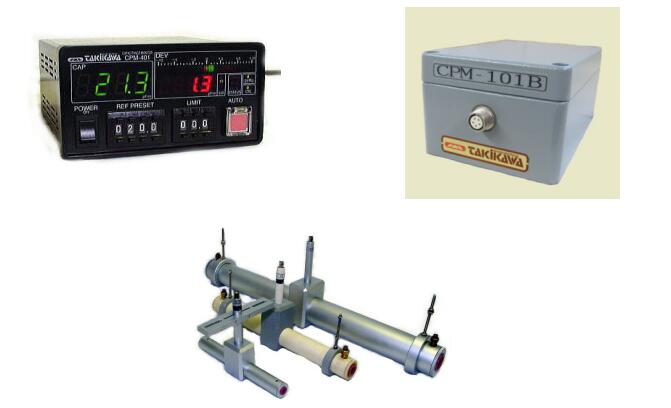

l This monitor can continuously measure capacitance of a covered cable in on-line water bath, which is manufacutured by continuous extruding machine.
l Cable capacitance control is available by outputting control voltage.
l Cablibration for Cable Capacitance Monitor is available by Calibration Capacitor (Option).
l By RS-485 interface, intergrated data management can be done.(Option)
Display unit | |
Model | CPM-401B |
Measuring range | 0 - 400pF/m (Expansible by option) |
Measuring accuracy | Either larger value of +/-0.2% of reading value or +/-0.2pF/m |
Resolution | 0.1pF/m |
Sampling time | 500 times/sec |
Capacitance display | 4-digit 7-segment LED (Green) |
Deviation display | 4-digit 7-segment LED (Red) |
LED Bargraph.(F.S.=selectable +/- 10 or 100pF/m) | |
Target value setting | 4-digit digital switch |
High/Low limit | 3-digit digital switch |
setting | |
Average | Moving average(1 - 5000 times, 1/2/5 steps) |
Zero adjustment | Push ZERO switch on front panel and adjust at automatic |
Analog output | Output capacitor/deviation(selectable) within +/-10VDC, |
Selectable gain, Isoration type. | |
High/Low limit | Display in Red LED, 1a-contact (AC250V resistance load 2A) |
contact output | |
BCD output | Option |
External | RS-232C interface or RS-485 Function(Option) |
communication | |
Control method | Proportional control |
Control output | Max. +/-10VDC, Isoration type |
Line speed | Max. 3000m/min |
Power supply | AC100 - 240V Free power supply 50/60Hz 10VA |
Ambient condition | Temperature:0 - 45 degree centigrade, |
Humidity:35 -85%RH(No condensation) | |
Outside dimension | 144(W) * 72(H) * 191(D)[mm] |
Weight | Approx. 1.7kg |
Sensor unit | ||||
Model | CP-05B | CP-09B | CP-15 | CP-26 |
Outside dimension | 28 * 226mm | 40 * 386mm | 60 * 656mm | 80 * 900mm |
Weight | 0.5kg | 1kg | 3kg | 6kg |
Water conductivity | 1mS/cm or less (It depends on water temperature and dissolved materials. Recommendable to use water with conductivity of 0.5mS/cm or less) | |||
Repeater unit | |
Model | CPM-101B |
Construction | Alminium diecast (Dust & Water proof) |
Ambient temperature | 0 - 45 degree centigrade |
Outside dimension | 80(W) * 125(H) * 57(D)[mm] |
Weight | Approx. 1.7kg |
