· These instruments mark to Cable/Wire/Pipe by Elastic rubber or Ink from spray at the time when alarm signal is received.
· At present, Elastoring marker is in patent application at home and abroad.

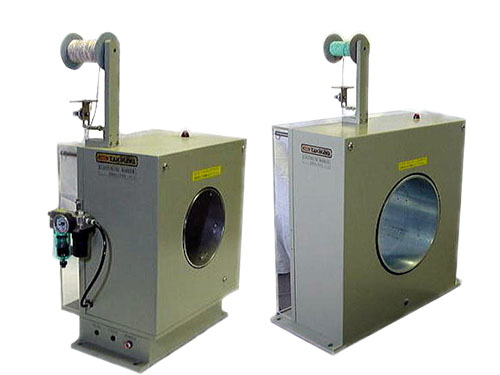

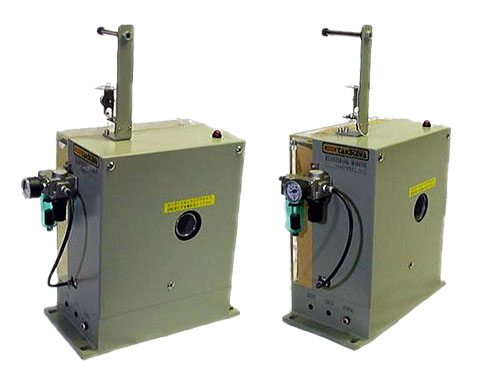

type | Elastoring Marker | |||||||
model | ||||||||
Marking material | Water paint | Elastic rubber string | ||||||
(by spray) | ||||||||
Removement marking | Difficult | Easy | ||||||
material from object | ||||||||
Material supply | ASAHI Water paint spray | Supply from Takikawa | ||||||
300ml recommendable | Engineering as bobbin | |||||||

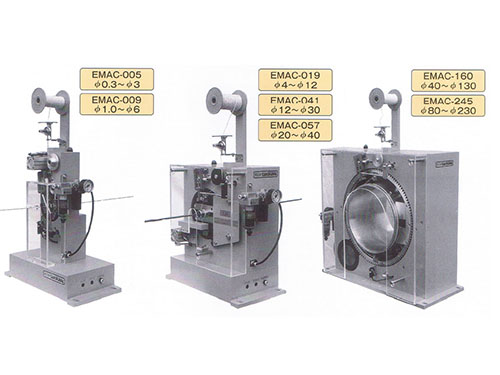

Thruough hole dia. | Non | 5mm | 9mm | 19mm | 41mm | 57mm | 160mm | 245mm |
Object dia. | Without restriction | 0.5 - 3mm | 1 - 6mm | 3 - 10mm | 10 - 35mm | 20 - 40mm | 50 - 120mm | 100 - 200mm |
Line speed | Without restriction | |||||||
Marking delay | 1 - 12sec | Max. 0.2sec(fixed) | ||||||
(chanegable) | ||||||||
Marking time | 1 - 5sec | (For a moment) | ||||||
(chanegable) | ||||||||
Repeat period | Total of Marking | Less than 3.5 sec | Less than | |||||
delay and time | 6 sec | |||||||
Power supply | AC100V 50/60Hz | AC100 - 240V 50/60Hz | ||||||
Power consumption | 30VA | 50VA | ||||||
Air supply | Unnecessary | 4kg/cm2 | ||||||
Outside dimension | 62(W) * 270(H) * 90(D)[mm] | 360(W) * 190(H) * 590(D)[mm] | 360(W) * 380(H) * 190(D)[mm] | 350(W) * 248(H) * 440(D)[mm] | 550(W) * 248(H) * 717(D)[mm] | |||
(Except rubber supply), | (Except rubber supply), | (Except rubber supply), | (Except rubber supply), | |||||
Weight:Approx.12kg | Weight:Approx. 20kg | Weight:Approx. 45kg | Weight:Approx. 45kg | |||||
